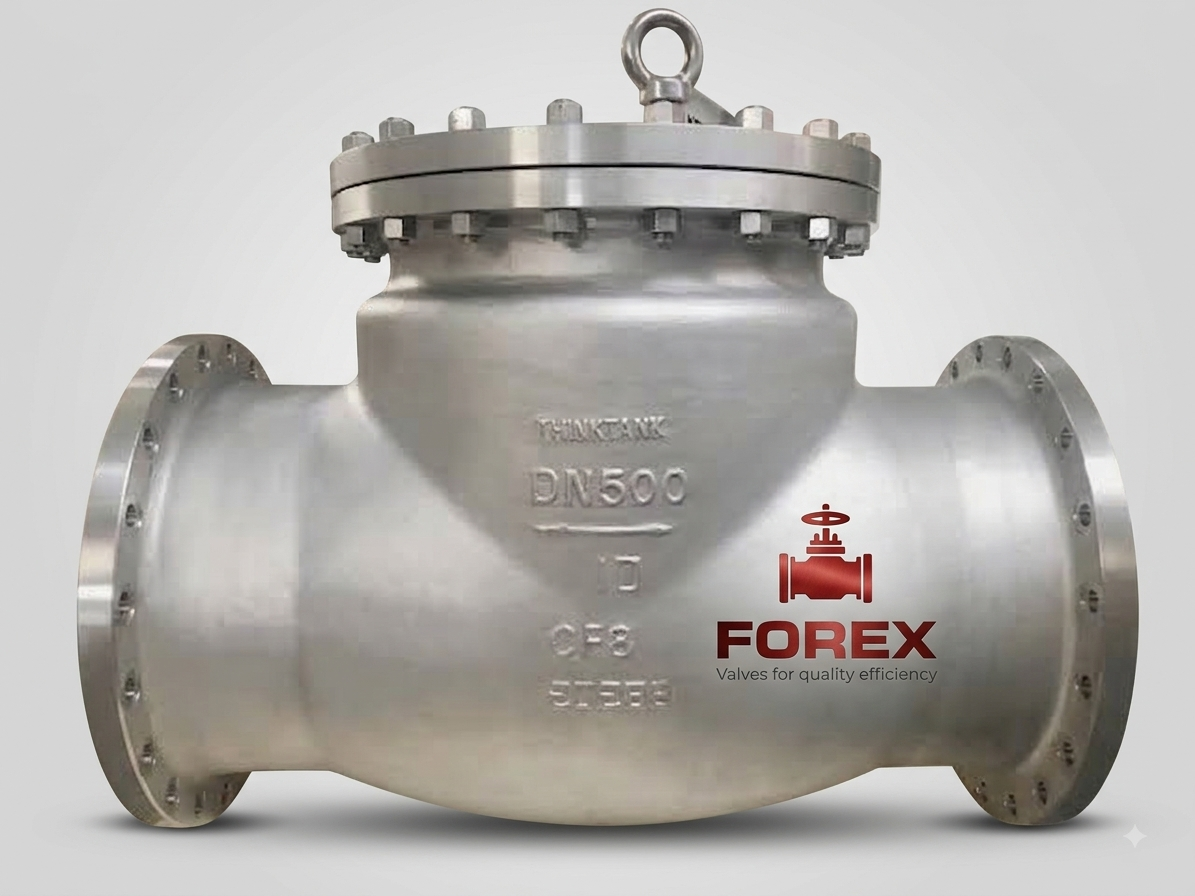

SS 304 Swing Type Check Valve

Technical Specifications

SS 304 Swing Type Check Valve
Valve Type Swing Type Check Valve
Nominal Size As per requirement
Pressure Rating As per requirement
Body Material SS 304
Disc Material SS 304
Bonnet Material SS 304
Seat Material SS 304 / As per application
End Connection Flanged / Threaded
Design Swing Type
Operation Automatic
Installation Horizontal / As recommended
Testing Standard API 598 / As applicable
Face-to-Face As per applicable standard
Medium Water, Air, Liquid & Compatible Fluids
Temperature Range As per material and service conditions
Manufacturing Standard As per applicable design standard

SS 304 Swing Type Check Valve

SS 304 Swing Type Check Valve is a non-return valve made of stainless steel which is used to prevent reverse flow in piping systems. It has a swing disk mechanism that opens with forward flow of fluid and automatically closes with reversal of flow. SS 304 construction gives it corrosion resistance and mechanical durability, making it suitable for a range of industrial applications.

This valve can be used with water, air, liquids and other media where automatic protection against backflow is required.

Features of SS 304 Swing Type Check Valve

  • SS 304 stainless steel body and internals
  • Swing disk mechanism with automatic flow regulation
  • Reverse flow cut-off without manual operation
  • Built with corrosion-resistant material
  • For horizontal piping
  • Flanged or threaded connection available
  • Suitable for water, air, liquids and compatible industrial media
  • Easy to maintain

Engineering Specs

Parameter Specification
Valve Type Swing Type Check Valve
Nominal Size As per requirement
Pressure Rating As per requirement
Body Material SS 304
Disc Material SS 304
Bonnet Material SS 304
Seat Material SS 304 / As per application
End Connection Flanged / Threaded
Design Swing Type
Operation Automatic
Installation Horizontal / As recommended
Testing Standard API 598 / As applicable
Face-to-Face As per applicable standard
Medium Water, Air, Liquid & Compatible Fluids
Temperature Range As per material and service conditions
Manufacturing Standard As per applicable design standard

Uses

SS 304 Swing Type Check Valves are used in piping systems where protection against reverse flow is required. Typical applications include:

  • Water purification systems
  • Water pipelines in industry
  • Piping for process
  • Chemical Treatment
  • Processing pharmaceuticals
  • Food and beverage processing
  • Lines on pump discharge
  • Pipelines for air and utilities

Working of SS 304 Swing Type Check Valve

In the normal forward flow, the fluid pressure pushes the swing disk off the valve seat and the medium can pass through the pipeline. If the flow stops or reverses, the disk returns to the seat and closes the flow passage, preventing backflow.

This means that the valve can work automatically without the need of an external actuator or manual intervention.

Supplier of SS 304 Swing Type Check Valve

Forex Valves produces and supplies SS 304 Swing Type Check Valves for industrial piping applications. Valve size, pressure rating, end connection and other construction details can be customized to suit specific service conditions and project requirements.
