Flow Regulation
The disc or plug changes the available flow passage to regulate flow according to the valve design and operating conditions.
Size Range: 2" to 24" (DN 50 to DN 600)
Pressure Ratings: ASME Class 150# / 300# / 600# / 900#
Design Standards: API 598, BS 6755
Testing Standards: API 598, BS 6755
Valve configurations can be developed for demanding operating conditions where specialized materials, sealing arrangements and testing requirements are required.
Forex Valves is based in Ahmedabad, Gujarat, India, and offers industrial valve solutions for pipeline applications. Cast steel globe valves are used to regulate or isolate fluid flow in systems where the valve design, materials and operating characteristics meet the application requirements.
Choosing a suitable cast steel globe valve requires consideration of pipeline size, operating pressure, temperature, process medium, material compatibility, end connections and required flow-control performance.

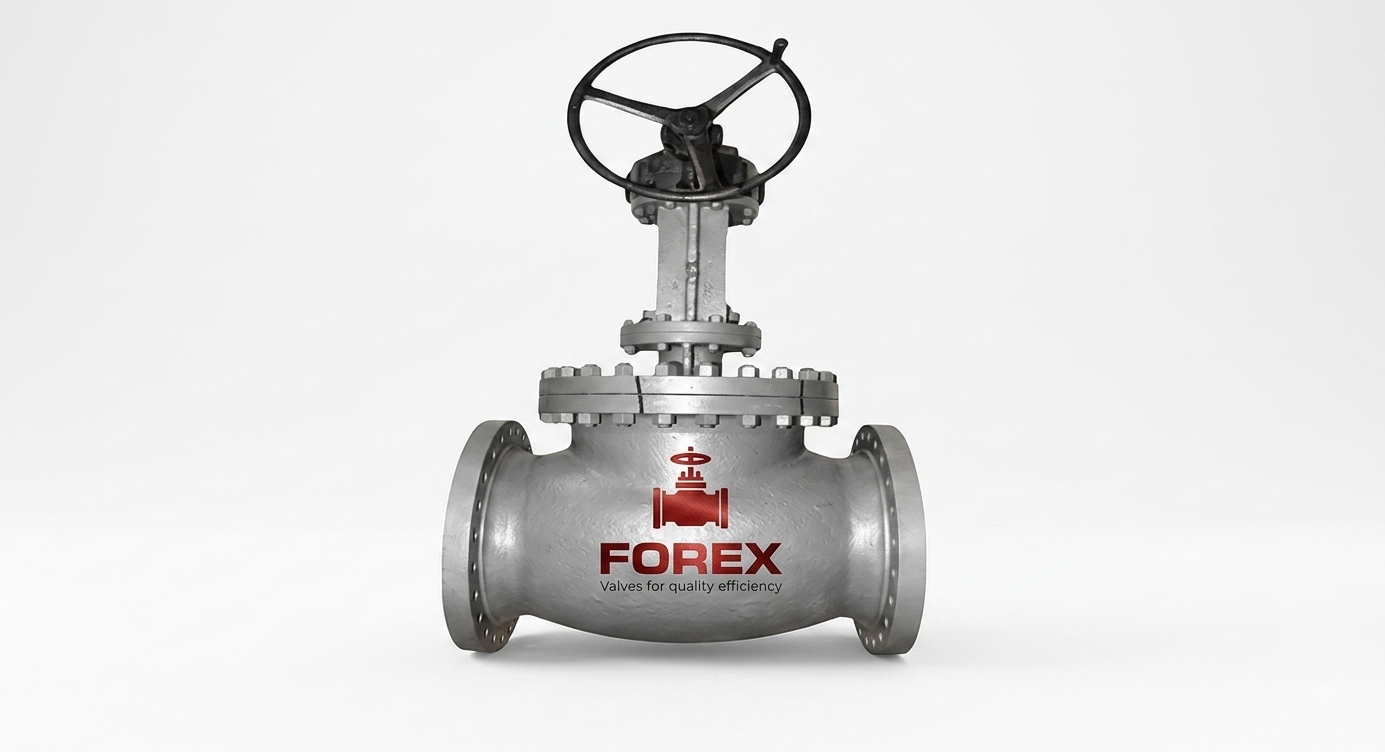

A cast steel globe valve is a linear-motion valve that controls flow by moving a disc or plug relative to a stationary seat. This movement changes the flow passage, allowing the valve to regulate the amount of fluid passing through the pipeline.
Globe valves are commonly selected for flow-control duties and can also provide shut-off when the valve's design and sealing performance are suitable for the application. Their flow characteristics and pressure drop depend on the internal design and operating conditions.
The disc or plug changes the available flow passage to regulate flow according to the valve design and operating conditions.
A globe valve can provide shut-off when its construction and specified sealing performance suit the application.
Body and internal component materials must meet the process medium and operating environment requirements.
The construction of a cast steel globe valve generally includes a body, bonnet, stem, disc or plug, seat and sealing components. The materials and design of these components must be compatible with the process medium and operating environment.
Before selecting a valve, confirm the following requirements:
Cast steel globe valves may be considered for industrial systems requiring flow regulation or isolation, subject to the selected valve's design limits and suitability for the service conditions.
Pipeline applications requiring specified flow regulation or isolation.
Services where the valve's pressure and temperature limits are suitable.
Selected plant applications based on project requirements.
Industrial services subject to applicable operating and material requirements.
Fluid-handling applications where material compatibility is confirmed.
Applications where wetted materials suit the process medium.
Review the application requirements before confirming a valve configuration for the pipeline system.
Determine whether the valve is required for flow regulation, isolation or another specified duty.
Specify the nominal valve size and required connection dimensions.
Provide normal and maximum operating pressure and temperature.
Confirm the fluid and any relevant material compatibility requirements.
Verify body, disc, stem, seat and sealing materials for the intended service.
Consider required flow rate, pressure drop and control characteristics.
Identify applicable design standards, inspection requirements and documentation.
Forex Valves is based in Ahmedabad, Gujarat, India. Customers can share their technical specifications and application details to confirm whether a suitable cast steel globe valve configuration is available.
Provide the valve size, operating conditions, process medium, material requirements and end connections when enquiring about the required configuration.
It is used to regulate or isolate fluid flow in piping systems where the valve design and material specifications are suitable for the application.
A disc or plug moves relative to a stationary seat, changing the available flow passage and controlling fluid flow.
Important factors include valve size, operating pressure, temperature, process medium, material compatibility, end connections and required flow-control performance.
Globe valves are commonly used for flow regulation. The allowable operating range and performance depend on the specific design and service conditions.
They may be used in process piping, utilities, power generation and other industrial applications when the selected configuration meets the operating requirements.
Provide the technical requirements and application details so the required valve configuration can be checked against the available product documentation.
Confirm your operating conditions, material requirements and flow-control needs before final valve selection.
Final valve selection should follow the applicable product documentation and project requirements.
