Valve Size
Confirm the required nominal size and flow passage dimensions.
| MFG Design | API 600 / BS 1414 / ASME B16.34 |
|---|---|
| Face-to-Face Dimension | ASME B16.10 / ISO 5752 / BS 2080 |
| End Connection | Flanged & Butt Weld |
| S.No. | Part Name | Material Option |
|---|---|---|
| 1 | Body & Bonnet | ASTM A 216 Gr WCB / WCA / WCC / ASTM A 217 Gr WC1 / WC6 / WC9 / C5 / C12A / CA15 / ASTM A 351 Gr CF8 / CF8M / CF3 / CF3M / CF8C / CF10 / CK20 / HK30 / ASTM A 352 Gr LCB / LCC / LCA / CA6NM / ASTM B148 C95500 / C95800 / C95400 |
| 2 | Wedge | 13% Cr / Stellited / ASTM A 351 Gr CF8 / CF8M / CF3 / CF3M / ASTM B148 C95500 / C95800 / C95400 |
| 3 | Stem | ASTM A 479 Type SS410 / SS304 / SS316 / SS304L / SS316L / ASTM A182 F304 / F316 / F304L / F316L |
| 4 | Seat Ring | 13% Cr / Stellited / ASTM A 351 Gr CF8 / CF8M / CF3 / CF3M / ASTM B148 C95500 / C95800 / C95400 |
| 5 | Back Seat | ASTM A 479 Type SS410 / SS304 / SS316 / SS304L / SS316L / ASTM A182 F304 / F316 / F304L / F316L |
| 6 | Gland Bush | ASTM A 479 Type SS410 / SS304 / SS316 / SS304L / SS316L / ASTM A182 F304 / F316 / F304L / F316L |
| 7 | Gasket | SS316 Spiral Wound Graphite Filler |
| 8 | Packing | 100% Graphite |
| 9 | Gland Flange | A105 / Carbon Steel |
| 10 | Yoke Nut | A105 / Carbon Steel / Gun Metal |
| 11 | Hand Wheel | SG Iron / Carbon Steel |
| 12 | Hand Wheel Nut | MS / Carbon Steel |
| 13 | Body & Bonnet Joint Stud | ASTM A 193 Gr B5 / B6 / B7 / B7M / B16 / B8 / B8A / B8C / B8M / B8MN |
| 14 | Body & Bonnet Joint Nut | ASTM A 194 Gr 2H / 2HM / 6F / 7M / 8 / 8A / 8CA / 8M / 8MA / 8F / 8N / 8MNA |
| 15 | Eye Bolt | A105 / A182 |
| 16 | Eye Bolt Nut | ASTM A 194 Gr 2H / 8 / 8M |
| 17 | Cross Bolt | ASTM A 193 Gr B7 / B7M / B8 / B8M |
| 18 | Cross Bolt Nut | ASTM A 194 Gr 2H / 8 / 8M |
| 19 | Yoke Sleeve | SG Iron / D2 / Gun Metal |
On mobile devices, swipe horizontally to view the complete material specification table.
View our product catalog for detailed information about Gate Valves, available configurations, materials, specifications and industrial valve solutions.
View Product CatalogForex Valves is based in Ahmedabad, Gujarat, India, and offers industrial valve solutions for pipeline applications. Cast steel gate valves are used to isolate or shut off flow in piping systems where the valve design and materials are suitable for the operating conditions.
Selecting a cast steel gate valve requires consideration of pipeline size, operating pressure, temperature, process fluid, body material, end connections and applicable project requirements. The valve configuration should be confirmed against the relevant product documentation before selection.

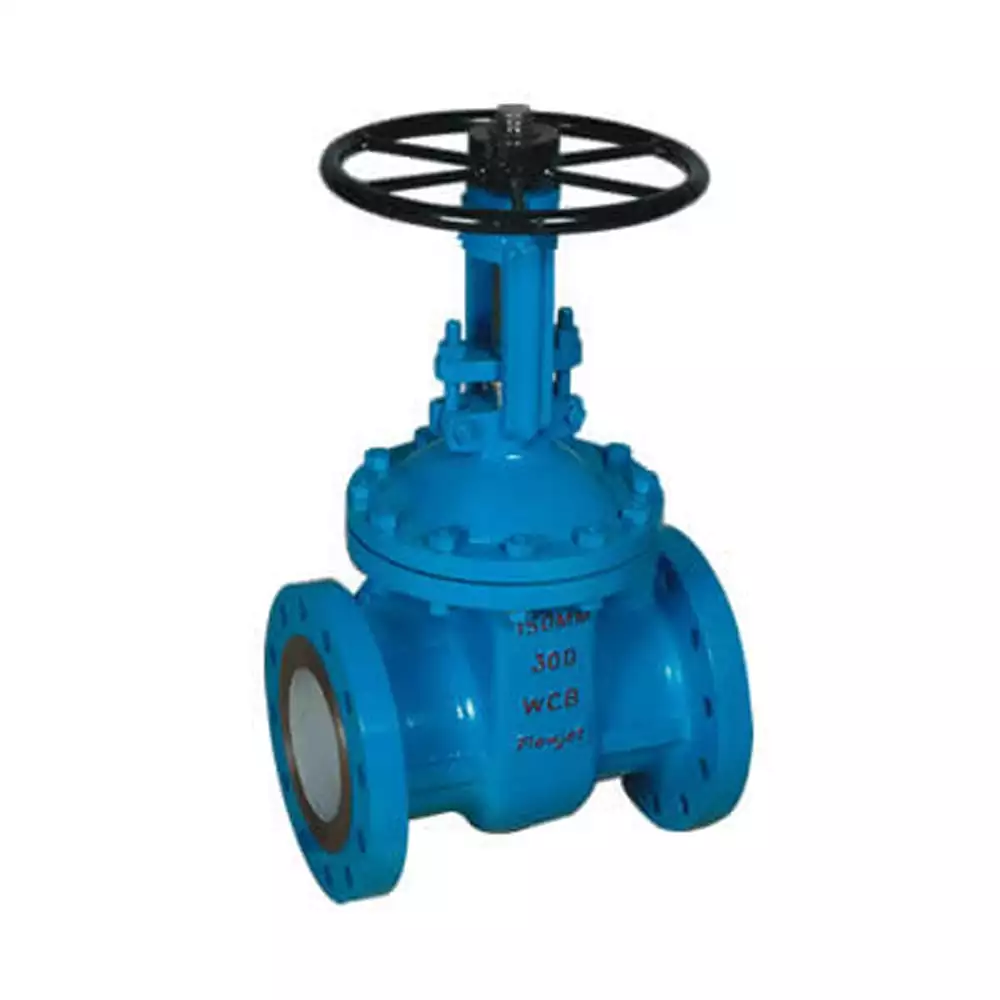

A cast steel gate valve controls flow by moving a gate or wedge between the open and closed positions. When fully open, the gate moves clear of the main flow passage. When closed, it restricts flow through the pipeline.
Gate valves are generally selected for isolation duties rather than routine flow regulation. The appropriate design depends on the operating conditions, installation requirements and the specifications of the piping system.
Cast steel is used in valve construction where the selected material grade and design meet the requirements of the intended application. The body, bonnet, gate, stem, seating arrangement and sealing components must be suitable for the service conditions.
Before selecting a valve, confirm these details:
Confirm the required nominal size and flow passage dimensions.
Verify the required pressure rating and operating temperature.
Confirm the specified cast steel grade and material compatibility.
Check the required connection type and applicable dimensions.
Verify the seating arrangement and sealing components for the intended service.
Confirm the operating arrangement, design requirements, inspection and testing documentation.
Cast steel gate valves may be considered for industrial pipeline isolation in applications such as:
Choosing the correct valve involves more than matching the nominal pipeline size. Review these requirements before placing an enquiry.
Confirm the required nominal size and connection dimensions.
Match the valve pressure rating to the system's operating conditions and applicable design requirements.
Check the permitted temperature range for the body material, seats and sealing components.
Confirm compatibility with the fluid and operating environment.
Specify the required connection type and relevant dimensions.
Confirm the intended isolation duty and project-specific operating requirements.
Identify required standards, inspection documents and testing requirements before ordering.
Forex Valves serves industrial valve requirements from Ahmedabad, Gujarat, India. Buyers can share their application details and technical requirements to confirm whether the required cast steel gate valve configuration is available.
Explore the Forex Valves Product Range → Review other industrial valve categories for your application. Enquire About Cast Steel Gate Valves → Share your valve size, operating conditions and technical specifications for confirmation.A cast steel gate valve is an isolation valve with a gate or wedge that moves to open or close the pipeline flow passage.
It is used to isolate flow in industrial piping systems where the selected valve design, pressure rating and materials are suitable for the service conditions.
Consider the pipeline size, operating pressure, temperature, process medium, end connections, material compatibility and applicable project specifications.
Gate valves are generally intended for on-off isolation rather than routine throttling. Confirm the intended duty and manufacturer's instructions before use.
Provide the required valve size, operating pressure, temperature, process medium, connection type and any applicable material, standard or inspection requirements.
Share your technical requirements, application details and operating conditions through the enquiry link in the section above.
Confirm the required size, pressure rating, material grade, operating temperature and connection details against the relevant product documentation.
