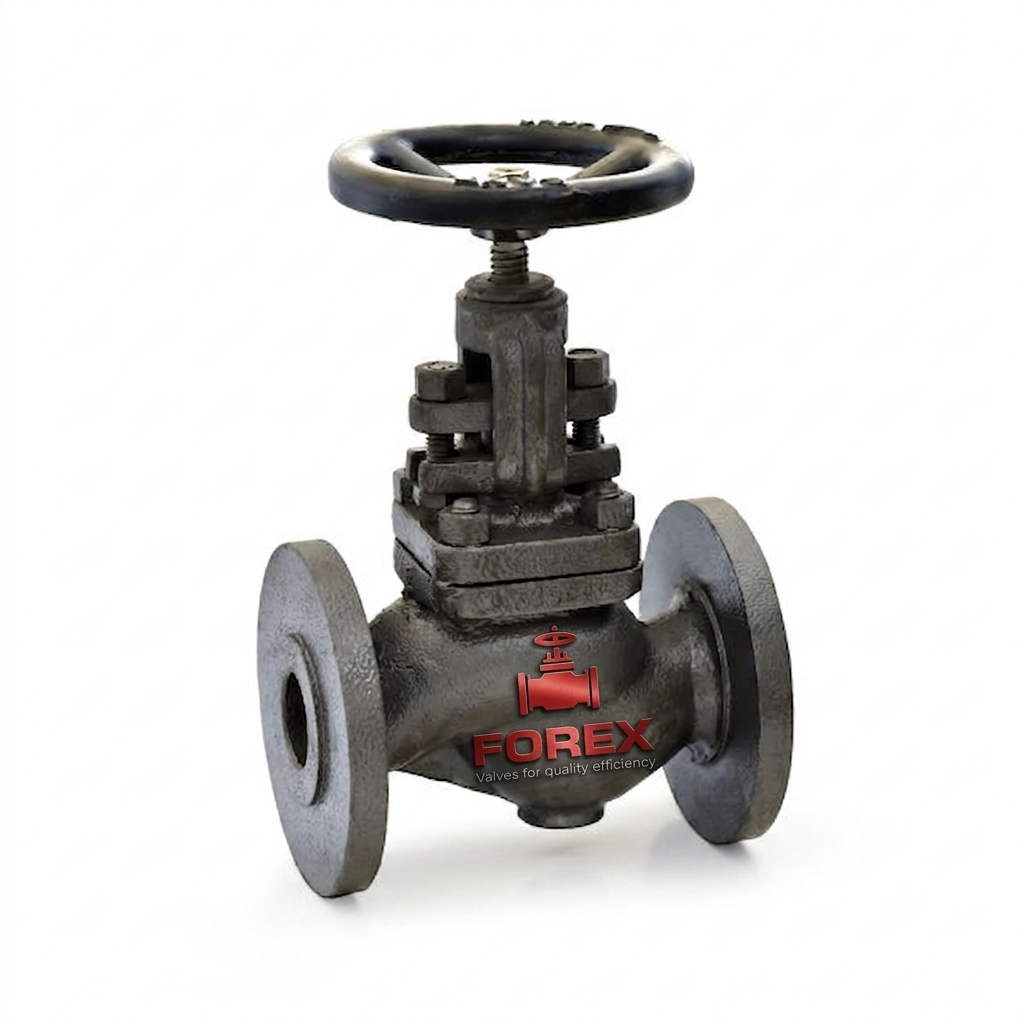

The SANT Cast Iron Stop Cum Non Return Valve combines flow isolation and non-return functionality in a single valve assembly. It features a straight pattern, bolted bonnet, outside screw and yoke construction, rising stem, and renewable seat and disc components.
Construction details and operating functions for industrial pipeline selection.
The Cast Iron Stop Cum Non Return Valve combines the functions of a stop valve and a non-return valve in a single assembly. It allows manual pipeline isolation and provides a non-return function according to the valve's internal design and operating conditions.
The listed configuration includes a straight-pattern body, bolted bonnet, outside screw and yoke mechanism, rising stem, and renewable seat and disc components.
Main construction and functional features listed for this valve.
Combines a stop function with non-return functionality in one valve assembly.
The specified construction includes a bolted bonnet arrangement.
Renewable seat and disc components are listed in the product specification.
AISI-410 stainless steel is listed for the seat ring, disc ring and stem.
Published product details. Confirm the final specification against the approved manufacturer datasheet.
| Parameter | Specification |
|---|---|
| Product | SANT Cast Iron Stop Cum Non Return Valve |
| HSN Code | 84813000 |
| Product Standard | BS:5152 |
| Pattern | Straight |
| Pressure Rating | PN 16 |
| Body Material | Published grade: IBR 86 to 93 Gr. A; verify against approved material schedule |
| Bonnet Type | Bolted bonnet |
| Stem Arrangement | Outside screw and yoke type, rising stem |
| Seat Type | Renewable seat |
| Disc Type | Renewable disc |
| Trim | Stainless steel AISI-410 |
| Gland Packing | Expanded pure flexible graphite |
| End Details | DIN 2533 RF, PN 16, undrilled flanges listed |
| Maximum Specified Steam Working Pressure | 13 kg/cm²g at 220°C steam, as published; verify approved operating limits |
Published hydrostatic test values and certification information.
| Test or Rating | Specified Value |
|---|---|
| Pressure Rating | PN 16 |
| Body Hydrostatic Test | 26 kg/cm²g |
| Seat Hydrostatic Test | 16 kg/cm²g |
| Back-Seat Hydrostatic Test | 16 kg/cm²g |
| Specified Steam Working Pressure | 13 kg/cm²g at 220°C, as published |
| IBR Certification | The published product information states that an IBR Test Certificate in Form III-C is furnished with every supply. Confirm certification requirements for the order. |
Component materials as listed in the supplied product information.
| Component | Material | Specification |
|---|---|---|
| Body, Bonnet, Valve Disc, Gland and Handwheel | Cast iron | IS:210 Gr. FG200 listed; verify against approved material schedule |
| Body Seat Ring, Valve Disc Ring and Stem | Stainless steel | AISI-410 |
| Gasket | Compressed asbestos fibre | IS:2712 Gr. C, as listed |
| Gland Packing | Expanded pure flexible graphite | Not specified |
| Fasteners | Mild steel | Not specified |
| Yoke Bush | Aluminium bronze | Not specified |
The valve combines a manual stop function with non-return functionality.
The handwheel operates the rising-stem mechanism to open or close the valve in accordance with the manufacturer's operating instructions.
The stop function allows the operator to isolate the pipeline when flow interruption is required.
The non-return mechanism is intended to restrict reverse flow. Its operation depends on the valve design and actual operating conditions.
Confirm application suitability using the valve's approved operating limits, materials and project requirements.
Review operating conditions, connection details and installation requirements before fitting the valve.
Dimensions published for the specified nominal valve sizes.
| Nominal Size (mm) | Nominal Size (Inches) | F H Closed (mm) | W (mm) |
|---|---|---|---|
| 40 | 1½ | 200 ± 1 | 220 |
| 50 | 2 | 230 ± 2 | 240 |
| 65 | 2½ | 290 ± 2 | 280 |
| 80 | 3 | 310 ± 2 | 310 |
| 100 | 4 | 350 ± 2 | 350 |
| 125 | 5 | 400 ± 3 | 400 |
| 150 | 6 | 480 ± 3 | 460 |
| 200 | 8 | 600 ± 3 | 510 |
