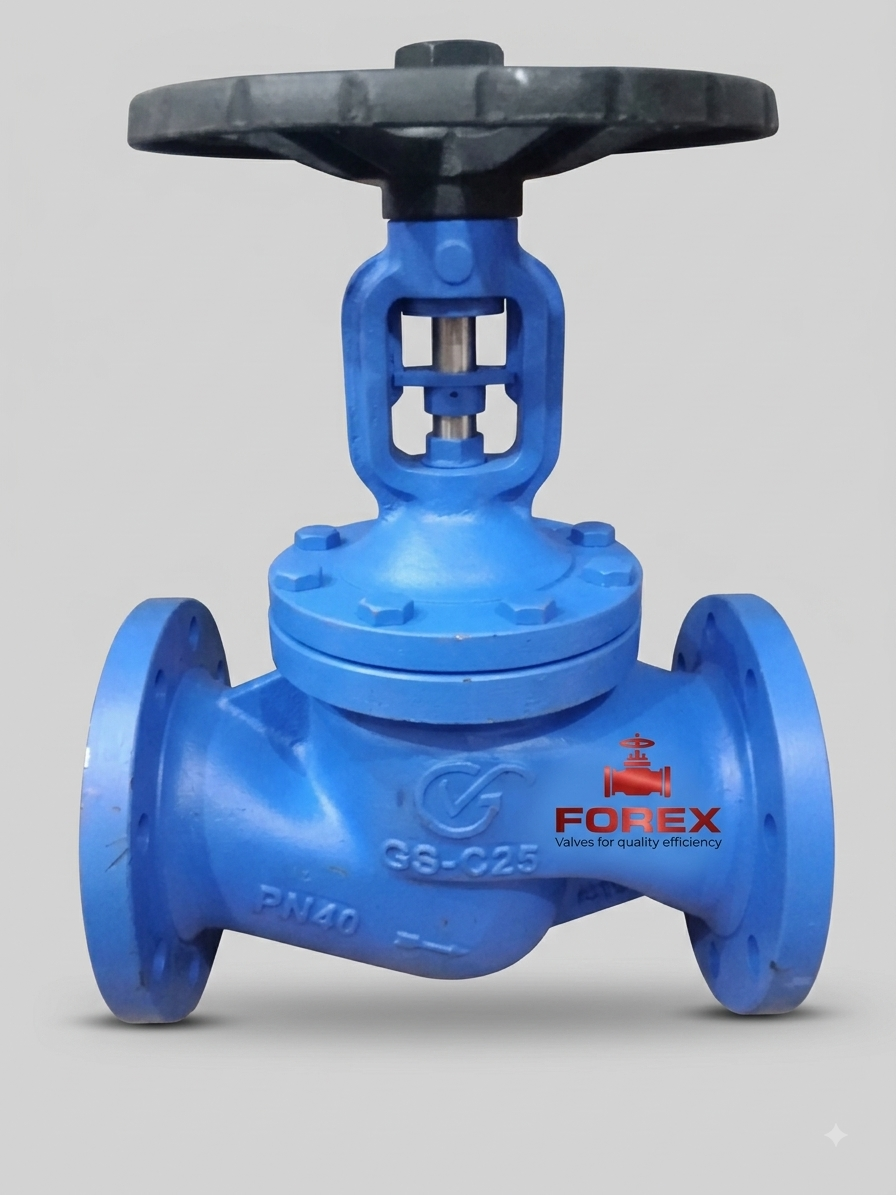

DN 350 / NPS 14 | Industrial Flanged Globe Valve
Click image to view larger
Cast steel globe valves are designed for reliable flow regulation and shut-off in industrial piping systems. The DN 350 / NPS 14 configuration is suitable for demanding applications where controlled flow and dependable operation are required.
| Specification | Typical Details |
|---|---|
| Valve Type | Cast Steel Globe Valve |
| Nominal Size | DN 350 / NPS 14" |
| Body Material | Cast Steel WCB |
| Bonnet | Bolted Bonnet |
| Trim | SS 13% Cr / SS304 / SS316, as required |
| Disc Type | Plug / Parabolic Disc |
| Stem | Stainless Steel |
| Seat | Integral / Renewable Seat |
| End Connection | Flanged |
| Pressure Class | Class 150 / 300 / 600 / 900 / 1500 |
| Design Standard | ASME B16.34 |
| Face-to-Face | ASME B16.10 |
| Flange Standard | ASME B16.5 / B16.47, depending on size |
| Testing Standard | API 598 |
| Operation | Handwheel / Gear / Actuator |
| Medium | Water, Steam, Oil, Gas and compatible fluids |
| Temperature | Depending on pressure, material and service |
ND 14 Type Cast Steel Globe Valve is an industrial globe valve used to control and shut off the flow of fluids in a piping system. The globe valve design provides a controlled flow path through the valve and is suitable for applications where flow regulation and isolation are required.
The valve features cast steel construction and can be configured with a body, bonnet, disk, stem, seat and trim according to the service conditions. Configuration, pressure rating, materials and end connection should be selected according to the application requirements.
The main pressure-containing part of the valve is the cast steel body. The bonnet is removable and bolted to the body, providing access to internal components for inspection and maintenance.
The disk moves against the valve seat to control the flow of fluid through the valve. Depending on the selected configuration and service requirement, globe valves can be fitted with plug-type or other disk designs for throttling and shut-off applications.
Material selection depends on the operating medium, pressure, temperature and service conditions. Cast steel globe valves are commonly manufactured with carbon steel body materials such as ASTM A216 WCB, with trim options including 13% Cr, SS304 and SS316, as specified for the application.
Before placing an order for the ND 14 Type Cast Steel Globe Valve, the final material composition and trim configuration should be confirmed against the required technical specifications.
Typical cast steel globe valves are designed according to ASME B16.34. Face-to-face dimensions can be provided according to ASME B16.10, while inspection and pressure testing are generally carried out according to API 598, where applicable.
Flanged-end configurations should comply with the applicable ASME flange standard based on the valve design, pressure class and size. The applicable standards should be confirmed for the specific ND 14 Type configuration and project requirements.
Cast Steel Globe Valve ND 14 Type is used in industrial piping systems where controlled flow regulation or shut-off is required. Typical service applications include:
Suitability depends on the selected material, pressure rating, operating temperature and service conditions.
The Cast Steel Globe Valve ND 14 Type is suitable for industrial valve requirements in India and Gulf markets including the United Arab Emirates, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.
Technical selection should be based on the actual valve configuration and project requirements rather than geographical location alone. Before procurement, verify the product specifications, pressure class, materials, connection dimensions and testing requirements.
| Specification | Details |
|---|---|
| Product Type | Cast Steel Globe Valve |
| Product Designation | ND 14 Type |
| Body Material | Cast Steel |
| Bonnet | Bolted Bonnet |
| Trim Options | 13% Cr / SS304 / SS316, as required |
| Disk Type | Plug / Parabolic Disk, as required |
| Stem | Stainless Steel |
| Seat | Integral / Renewable Seat |
| End Connection | Flanged, as required |
| Pressure Class | As per selected configuration |
| Design Standard | ASME B16.34, where applicable |
| Face-to-Face | ASME B16.10, where applicable |
| Flange Standard | Applicable ASME flange standard |
| Testing Standard | API 598, where applicable |
| Operation | Handwheel / Gear / Actuator, as specified |
| Service Media | Water, Steam, Oil, Gas and compatible fluids |
| Temperature | According to material, pressure and service conditions |
Before selecting the Cast Steel Globe Valve ND 14 Type, check the required service medium, pressure class, operating temperature, body material, trim, seat arrangement, end connection and operating method.
These parameters determine the suitable valve configuration for the piping system and ensure compatibility with the operating conditions.
