Gate Valves
Gate Valve Specifications
Industrial gate valves designed for reliable flow isolation, robust construction and dependable service performance across different industrial applications.

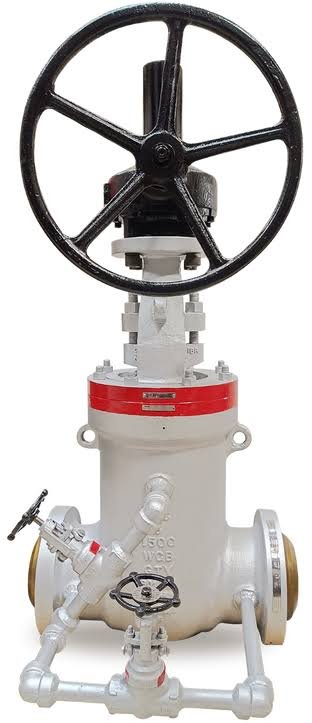

Gate Valve Manufacturer, Supplier & Exporter
Gate valves are widely used in industrial piping systems where reliable isolation of fluid flow is required. Unlike control valves, gate valves are generally designed for fully open or fully closed operation and provide a low-resistance flow path when fully open.
Forex Valves manufactures and supplies industrial gate valves designed to provide reliable shut-off, mechanical strength and long-term service performance in fluid-handling systems. Our gate valve configurations can be selected according to pressure ratings, temperatures, materials and operating environments.
Reliable Industrial Gate Valves for Isolating Flow
A gate valve uses a vertically moving gate or wedge to start and stop flow through a pipeline. When fully open, the gate moves away from the flow passage, helping minimize flow restriction and pressure loss. When fully closed, the valve provides positive isolation of the pipeline.
Our gate valve range is designed for industrial environments where reliable operation and robust construction are important. Depending on application requirements, different body materials, end connections, pressure classes, bonnet arrangements and operating mechanisms can be selected.
Gate Valve Designs and Configuration Options
Different piping systems require different valve constructions. Forex Valves offers gate valve configurations that can be selected according to service conditions, installation requirements and project specifications.
Cast Steel Gate Valves
Cast steel gate valves provide a practical combination of mechanical strength and durability. They are suitable for demanding industrial services such as process plants, oil and gas facilities, power generation plants and general industrial pipelines.
Forged Gate Valves
Forged gate valves are manufactured using high-strength materials to provide structural integrity and dependable performance. They are particularly suitable for higher-pressure and higher-temperature services, especially in smaller bore applications.
Wedge Gate Valves
Wedge gate valves use a wedge-shaped closure element that moves between the valve seats to provide effective shut-off. They are commonly selected for pipeline applications requiring reliable isolation and full-bore flow when open.
Rising Stem and Non-Rising Stem Designs
Gate valves are available with rising or non-rising stem arrangements depending on available space, valve size, installation conditions and operating requirements. The appropriate stem configuration can be selected according to project specifications.
Manual and Gear Operated Gate Valves
Smaller gate valves may be operated using handwheels, while larger valves can be equipped with gear operators for easier operation. Other operating arrangements may be considered depending on valve size, accessibility and project requirements.
Materials Available for Different Services
Material selection is an important part of gate valve design because the selected material must be compatible with the operating temperature, pressure and characteristics of the process medium.
Gate valves may be manufactured using materials suitable for different industrial services, including:
- Carbon Steel
- Stainless Steel
- Alloy Steel
- Duplex Stainless Steel
- Super Duplex Stainless Steel
- Nickel Alloys
Material selection should be based on application requirements, particularly for corrosive fluids, high-temperature services, hydrocarbons, steam and water applications.
Pressure Classes and Size Options
Forex Valves supplies gate valves in various configurations to meet project specifications, applicable standards and service conditions. Available configurations may include different nominal valve sizes, pressure classes, end connections, bore configurations, bonnet designs, seat arrangements, stem configurations and operating options.
Gate valve specifications should be selected according to pipeline design, operating pressure, temperature and process medium requirements.
Gate Valve Standards and Quality Requirements
Industrial gate valves may need to comply with internationally recognized standards depending on their application and project specifications. Manufacturing and testing requirements can include dimensional inspection, pressure testing, material verification and functional checks.
Critical applications may require additional considerations such as fire-safe construction, fugitive-emission requirements, corrosion-resistant materials and other special service specifications.
Applications of Gate Valves
Gate valves are commonly selected for industrial applications where reliable pipeline isolation is required.
Oil & Gas
Gate valves are widely used across upstream, midstream and downstream systems to isolate sections of pipelines, equipment and process systems.
Petrochemical Industry
Gate valves can be used in hydrocarbon processing systems and associated utility services where dependable shutdown and isolation are required.
Power Generation
Gate valves can be used in power plants for water, steam and utility services where valve materials and pressure-temperature ratings must match operating conditions.
Chemical Processing
Gate valves used in chemical processing applications should be selected with appropriate materials and construction to provide compatibility with corrosive or chemically aggressive fluids.
Water and General Industrial Services
Gate valves are also used in water transmission, industrial utilities, water treatment systems and other fluid-handling applications requiring dependable isolation.
LNG and Cryogenic Applications
Specially engineered gate valve configurations can be selected for low-temperature services where material compatibility, sealing performance and operating conditions require careful consideration.
Why Choose Forex Valves?
Selecting an industrial valve involves more than choosing the valve type. Construction materials, pressure ratings, operating conditions, connection types and applicable standards must all be considered for the intended service.
Forex Valves focuses on providing valve solutions based on individual project and application requirements. Our approach can include:
- Application-specific valve selection
- Multiple material options
- Different pressure and size configurations
- Industrial-grade construction
- Quality testing and inspection
- Customization according to project specifications
- Support for domestic and international requirements
Our products are suitable for industrial customers, engineering companies, EPC contractors, distributors and process industries seeking reliable valve solutions.
Global Supply of Industrial Gate Valves
Forex Valves provides industrial valve solutions for projects across different markets. Our gate valves can be configured according to purchaser requirements, project specifications, applicable standards and documentation needs.
Whether for a new process plant, pipeline project, utility system, refinery operation or industrial maintenance application, valve configurations can be selected according to the technical requirements of each project.
How to Select the Appropriate Gate Valve
Before selecting a gate valve, several technical factors should be evaluated to ensure compatibility with the piping system and process conditions.
- Pipeline Size: The valve size should match the piping system and required flow passage.
- Operating Pressure Rating: The pressure class should be suitable for the maximum operating pressure of the system.
- Temperature: Body, trim and sealing materials should be compatible with the operating temperature.
- Fluid Characteristics: Corrosive, abrasive, toxic, hydrocarbon and other specialized media may require specific materials and construction.
- Connection Type: Flanged, threaded, welded or other connections should match the existing piping system.
- Operating Method: Handwheel, gearbox or another operating arrangement may be selected according to valve size and accessibility.
- Applicable Standards: Project requirements may specify particular manufacturing, testing and inspection standards.
Selecting the appropriate gate valve can improve service reliability and help reduce the possibility of premature valve failure.
Gate Valves Versus Other Industrial Valves
Gate valves are generally designed for isolation rather than continuous flow regulation. They are therefore not normally the preferred choice for applications requiring frequent throttling or flow adjustment.
Ball valves offer quick shut-off and quarter-turn operation, while butterfly valves may be preferred for large pipelines where compact construction and lower weight are important. Globe valves are commonly considered when flow regulation is required.
The appropriate valve type should be selected based on its intended purpose, pressure, temperature, process medium, frequency of operation and pipeline configuration.
Frequently Asked Questions About Gate Valves
What can a gate valve be used for?
Gate valves are typically used to isolate flow in pipelines and are generally operated in fully open or fully closed positions. They are not normally intended for continuous throttling.
Where are industrial gate valves commonly used?
Industrial gate valves are commonly used in oil and gas, petrochemical, chemical processing, power generation, water treatment and other industrial piping applications.
What materials are available for gate valves?
Gate valves may be manufactured from carbon steel, stainless steel, alloy steel, duplex materials and nickel alloys, depending on the application and service requirements.
Are gate valves suitable for high-pressure applications?
Yes. Properly specified gate valves are widely used in high-pressure systems. The pressure class, materials and construction must be selected according to the operating conditions.
Are gate valves suitable for high-temperature applications?
Suitable gate valve designs and materials can be used for elevated-temperature services. The valve specification should be selected according to the operating temperature and process medium.
Can gate valves be customized?
Gate valves can be customized according to project requirements, including material, pressure class, size, end connection, trim arrangement and operating method, subject to the available design and manufacturing requirements.
What information is required when selecting a gate valve?
Important selection information includes valve size, pressure, temperature, fluid medium, material requirements, end connection, operating method and applicable project standards.
Request a Gate Valve
Need an industrial gate valve for your pipeline, process plant or special service? Contact Forex Valves with your required valve size, pressure rating, material, operating temperature and application details. Our team can assist in selecting a suitable valve configuration based on your technical requirements and project specifications.
