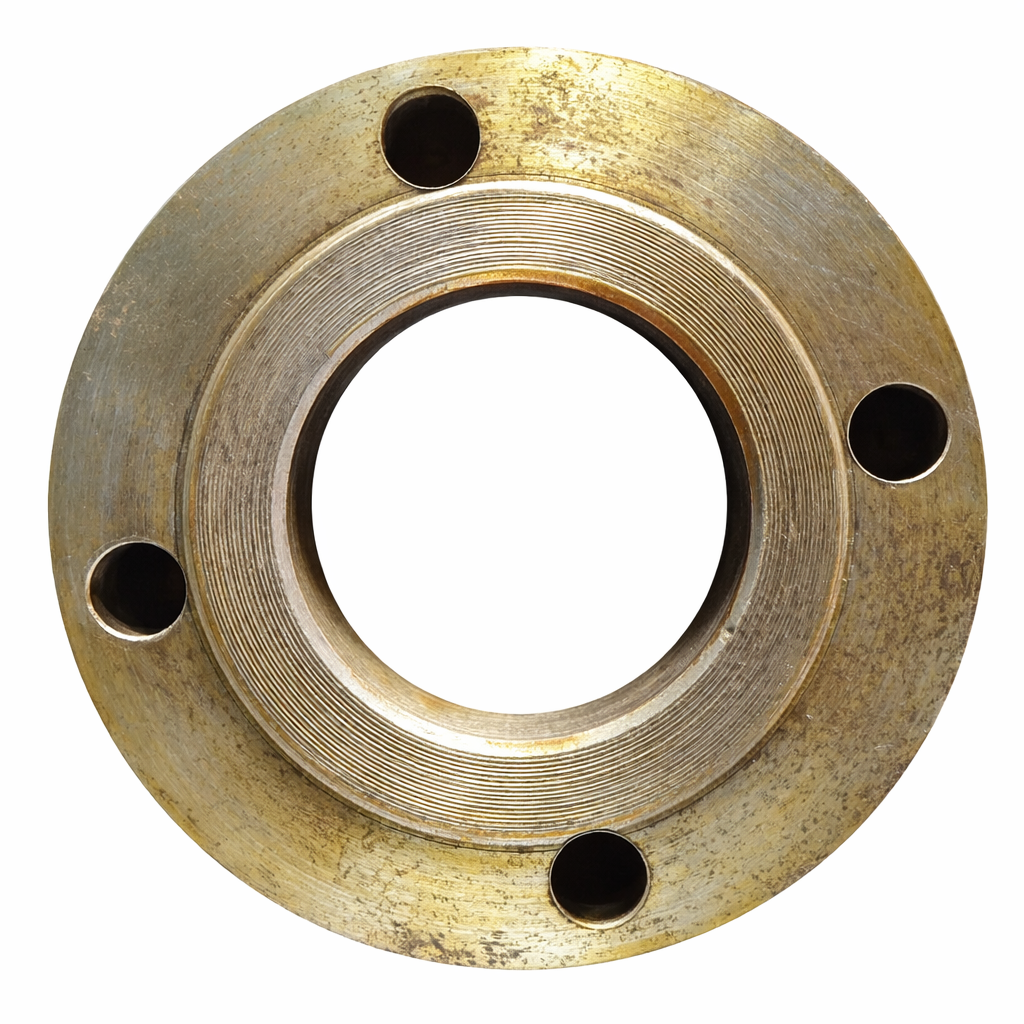

Mild Steel Slip On Flanges for piping applications requiring BS 10 Table D drilling and specified dimensional requirements.
MS Slip On Flange Table D is a mild steel pipe flange used for connecting pipes and piping components where BS 10 Table D drilling and dimensional requirements are specified.
The slip-on design allows the flange to be positioned over the pipe before welding, providing a practical flange connection for suitable piping systems.
It is used in water, HVAC, fire-fighting, utility and low-pressure industrial piping applications where the selected flange standard, dimensions, material and service conditions are suitable.
| Product Name | MS Slip On Flange Table D |
|---|---|
| Material | Mild Steel (MS) |
| Standard | BS 10 – Table D |
| Indian Standard | IS 6392 |
| Type | Slip On Flange |
| Pressure Service | Low-pressure piping applications |
| Drilling | BS 10 Table D |
| Size Range | As per required size and specification |
| Facing | Raised Face (RF) / Flat Face (FF) on request |
| Bore | Plain or machined to pipe OD |
Dimensional data for the listed nominal pipe sizes. All dimensions are in millimetres.
| Nominal Pipe Size | Pipe O.D. | Flange O.D. | Bolt Circle Dia. | No. of Bolts | Bolt Dia. | Thickness |
|---|---|---|---|---|---|---|
| 1/2″ | 21.3 | 95.3 | 66.7 | 4 | 12.7 | 4.8 |
| 3/4″ | 26.7 | 101.6 | 73.0 | 4 | 12.7 | 4.8 |
| 1″ | 33.4 | 114.3 | 82.6 | 4 | 12.7 | 4.8 |
| 1 1/4″ | 42.2 | 120.7 | 87.6 | 4 | 12.7 | 6.4 |
| 1 1/2″ | 48.3 | 133.4 | 98.4 | 4 | 12.7 | 6.4 |
| 2″ | 60.3 | 152.4 | 114.3 | 4 | 15.9 | 7.9 |
| 2 1/2″ | 73.0 | 165.1 | 127.0 | 4 | 15.9 | 7.9 |
| 3″ | 88.9 | 184.2 | 146.1 | 4 | 15.9 | 9.5 |
| 3 1/2″ | 101.6 | 203.2 | 165.1 | 4 | 15.9 | 9.5 |
| 4″ | 114.3 | 215.9 | 177.8 | 4 | 15.9 | 9.5 |
| 5″ | 141.3 | 254.0 | 209.6 | 8 | 15.9 | 12.7 |
| 6″ | 168.3 | 279.4 | 228.6 | 8 | 15.9 | 12.7 |
| 7″ | 190.5 | 304.8 | 260.4 | 8 | 15.9 | 12.7 |
| 8″ | 219.1 | 336.6 | 292.1 | 8 | 15.9 | 12.7 |
| 9″ | 244.5 | 368.3 | 323.9 | 8 | 19.1 | 15.9 |
| 10″ | 273.0 | 406.4 | 355.6 | 8 | 19.1 | 15.9 |
| 12″ | 323.9 | 457.2 | 406.4 | 12 | 19.1 | 15.9 |
| 14″ | 355.6 | 527.1 | 469.9 | 12 | 22.2 | 19.1 |
| 16″ | 406.4 | 577.9 | 520.7 | 12 | 22.2 | 19.1 |
| 18″ | 457.2 | 641.4 | 584.2 | 12 | 22.2 | 22.2 |
| 20″ | 508.0 | 704.9 | 641.4 | 16 | 22.5 | 25.4 |
| 24″ | 609.6 | 825.5 | 755.7 | 16 | 25.4 | 28.6 |
| 26″ | 660.4 | 889.0 | 812.8 | 20 | 28.6 | 31.8 |
| 28″ | 711.2 | 952.5 | 876.3 | 20 | 28.6 | 31.8 |
| 30″ | 762.0 | 1016.0 | 939.8 | 24 | 31.8 | 35.0 |
| 32″ | 812.8 | 1080.0 | 1003.3 | 24 | 31.8 | 35.0 |
| 34″ | 863.6 | 1143.0 | 1066.8 | 28 | 31.8 | 38.0 |
| 36″ | 914.4 | 1206.5 | 1130.3 | 28 | 31.8 | 38.0 |
MS Slip On Flanges are used to connect pipes and piping components where the selected flange standard, dimensions, material and service conditions are suitable. Common applications include water, utility, HVAC, fire-fighting and low-pressure industrial piping systems.
IGLELE manufactures and supplies BS, DIN, ANSI and special flanges according to specified material, dimensions and manufacturing requirements.
MS Slip On Flange Table D is a mild steel pipe flange used for connecting pipes and piping components in systems requiring BS 10 Table D dimensional and drilling requirements. The slip-on design allows the flange to be fitted over the pipe before welding.
The flange is specified according to pipe size, drilling, facing, bore, material and applicable dimensions. MS Slip On Flanges are used in water, HVAC, fire-fighting, utility and industrial piping applications.
MS Slip On Flange Table D is suitable for compatible piping connections in the following applications:
Water supply and distribution networks requiring compatible flange connections.
HVAC systems, utility lines and associated service piping connections.
Fire-fighting piping systems where the specified flange configuration is suitable.
Service lines and compressed-air piping applications requiring compatible flange connections.
Industrial utility and piping systems based on applicable project specifications.
General piping and service connections selected according to pipe and project requirements.
Proper flange selection should be based on pipe size, mating flange, applicable standard, service conditions and project specifications.
BS 10 Table D specifies the relevant flange dimensional and drilling requirements for the applicable configuration. IS 6392 is relevant to steel pipe flanges for Indian applications.
Before procurement, the required standard, nominal pipe size, flange dimensions, drilling, facing, bore and material requirements should be confirmed. Project drawings should be followed where specific dimensions or connection details are required.
MS Slip On Flange requirements can be supplied for industrial and piping projects in Ahmedabad, Gujarat and other industrial locations across the state.
Supply requirements can include Ahmedabad, Vadodara, Surat, Rajkot, Bharuch, Ankleshwar, Vapi, Jamnagar, Gandhinagar, Dahej and other industrial areas in Gujarat.
Flange selection can be based on pipe size, BS 10 Table D drilling, material, facing, bore and project requirements.
MS Slip On Flange requirements can also be considered for industrial locations across India, including Mumbai, Pune, Nashik, Delhi, Chennai, Hyderabad, Bengaluru, Kolkata, Visakhapatnam and Kochi.
For Indian projects, the flange should be specified according to the applicable standard, material, dimensions, drilling and piping service requirements.
MS Slip On Flange Table D can be supplied for industrial procurement and project requirements in the Gulf region, subject to product specifications and project requirements.
For Gulf projects, the required flange should be confirmed according to the project standard, nominal pipe size, drilling, material, facing, bore and service conditions.
MS Slip On Flange requirements can be considered for international industrial projects and procurement enquiries across Asia, the Middle East, Europe, Africa, North America, South America and Oceania.
International orders can be quoted according to the required flange size, BS 10 Table D specification, material, drilling, facing, bore, quantity and project requirements.
Note: Final flange selection should be based on the applicable standard, pipe dimensions, mating connection, material requirements and service conditions.
