50 mm to 600 mm
Floating type: PN 20, PN 40 and Class 150 to Class 2500.
API 623, BS 1873 and ASME B16.34.
Testing can be carried out according to applicable project requirements.
| End Connection | Standard |
|---|---|
| Flanged End | ASME B16.5 |
| Butt-Weld End | ASME B16.25 |
Globe valve design complies with API 623, featuring a higher stem diameter than conventional BS 1873 configurations.
Configurations are available for fugitive emission requirements in accordance with API 624 and ISO 15848-1.
Body-guided disc construction helps provide disc stability and minimize vibration during operation.
Non-rotating rising stem construction for 2" and above can help reduce operating torque compared with rotating rising-stem designs.
In-situ seat arrangements are available across the globe valve range for dependable seating performance.
Inconel overlay cladding is available as an option for applications requiring enhanced surface resistance.
Soft-seated and metal-seated configurations can be specified for zero-leakage shutoff requirements in accordance with API 598 or the applicable project standard.

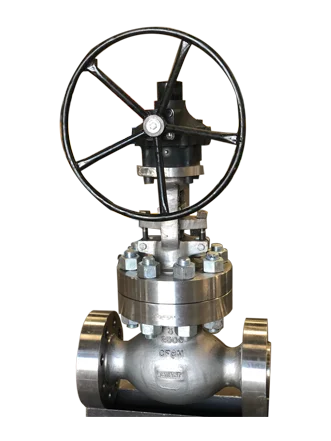

Forex Valves manufactures and supplies industrial globe valves for piping systems where controlled flow, reliable shut-off and consistent operation are important. Our valves are designed for industrial services involving liquids, gases, steam and other process media.
A globe valve regulates flow by moving a disc toward or away from a fixed seating surface. This arrangement allows the valve opening to be adjusted according to the required flow condition, making it suitable for systems where flow regulation is an important operating requirement.
Based in Ahmedabad, India, Forex Valves serves customers across India and international markets with valve configurations selected according to application requirements, operating conditions and project specifications.
Different process systems require different valve configurations. Depending on the application, Forex Valves can provide a range of construction and design options.
Material, size, pressure class, seating arrangement and operating method can be selected according to the service conditions and project requirements.
A globe valve operates through the movement of a disc against a stationary seat. The position of the disc determines the available flow passage.
This operating principle makes globe valves particularly useful in systems where controlled flow adjustment is required.
The linear movement of the disc allows the valve opening to be adjusted progressively, helping operators manage flow in process and utility lines.
Appropriate seating and trim configurations can provide dependable closure when the valve is correctly selected for the intended service.
Industrial-grade body and internal materials can be selected according to pressure, temperature and fluid characteristics.
Globe valves can be configured for steam, water, hydrocarbons, gases and various process fluids.
Depending on valve size and installation requirements, operation can be provided through a handwheel, gearbox or actuator.
Globe valves are used across a wide range of industries where controlled flow adjustment or dependable isolation is required.
Used in process, utility and pipeline systems for handling hydrocarbons and associated fluids.
Suitable for process lines where controlled flow and material compatibility are important.
Commonly selected for steam, water and utility services in power-generation facilities.
Used in treatment plants and industrial water systems for managing fluid movement.
Suitable for manufacturing plants, industrial utilities, process equipment and other fluid-handling systems.
Material selection depends on the process medium, pressure, temperature and surrounding operating conditions. Available construction options may include:
Trim and seating materials can also be selected according to temperature, pressure, corrosion conditions and the characteristics of the process fluid.
Forex Valves provides different operating arrangements depending on valve size, accessibility and project requirements.
The operating arrangement can be selected according to accessibility, operating frequency and the required level of automation.
Globe valve design, dimensions, materials and testing can be specified according to applicable industry standards and project requirements.
Depending on the selected configuration, inspection requirements may include pressure testing, dimensional inspection, material verification and functional checks.
Additional inspection and documentation requirements can also be considered for EPC projects, process plants and international orders.
Selecting the appropriate valve requires more than choosing the valve type. Line size, pressure, temperature, process medium, material, connection type and operating method should all be considered before final selection.
Forex Valves works with customers to develop suitable configurations for new installations, plant expansion projects, replacement requirements and maintenance applications.
Forex Valves' manufacturing base in Ahmedabad, India supports industrial customers and projects in domestic as well as international markets.
Product configurations can be aligned with customer specifications, applicable standards and project documentation requirements. The range is suitable for engineering companies, EPC contractors, distributors, manufacturers and industrial end users.
Globe valves are primarily used where controlled adjustment of fluid flow is required. They can also provide shut-off when correctly specified for the application.
Yes. Suitable materials and configurations can be selected for steam applications based on operating pressure and temperature.
Yes, when the pressure class, materials, construction and testing requirements are appropriate for the operating conditions.
Depending on the application, options may include carbon steel, stainless steel, alloy steel, duplex stainless steel and nickel-based alloys.
Yes. Manual, gearbox, electric, pneumatic and hydraulic operating arrangements can be considered depending on the valve and project requirements.
Important details include pipeline size, operating pressure, temperature, process medium, material requirements, end connection and operating method. These details help determine a suitable configuration.
Looking for a globe valve for your process plant, pipeline or industrial application? Share your required size, pressure rating, temperature, process medium, material preference and connection details with Forex Valves.
Our team can assist in identifying a suitable valve configuration based on your application and project requirements.
